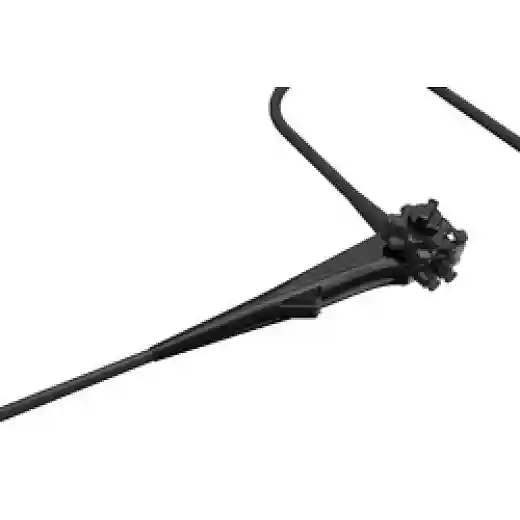

Gastroscopy Imaging System
SP-WJA
Diagnostic and surgical procedures in gastroenterology: upper gastrointestinal endoscopy, exploration and treatment of tumors and polyps, etc.
Quantity
- Features
- Photo and video recording for statistical research and remote consultation
- With external monitor for easy surgical observation and teaching operation
- Electronic imaging to enhance the flexibility and insertion performance of the endoscopy, reducing patient pain during the examination
- 2.0 megapixel camera to capture more image information
- Automatic or manual white balance adjustment to ensure the true reproduction of the image color
- Fully waterproof design for full immersion cleaning and disinfection of endoscopes to reduce cross infection
- A spare machine is provided during the maintenance period to ensure the product is used continuously
- Product Specification
| Optical System | Field of view | 120° |
| Depth of Field | 3~50mm | |
| Insertion Part | Distal end diameter | 9.3mm |
| Outer diameter | 9.3mm | |
| Max. insertion part outer diameter | 10.4mm | |
| Working length | 1050mm | |
| Working channel | inner diameter | 3.2mm |
| Flexible Part | Deflection Angle | Up210°, down 90°, left 100°, right 100° |
| Total length | 1350mm | |
