Veterinary Gastroscopy Imaging System
SP-VGIS
Diagnostic and surgical procedures in gastroenterology: upper gastrointestinal endoscopy, exploration and treatment of tumors and polyps, etc.
Quantity
- Features
- Photo and video recording for statistical research and remote consultation

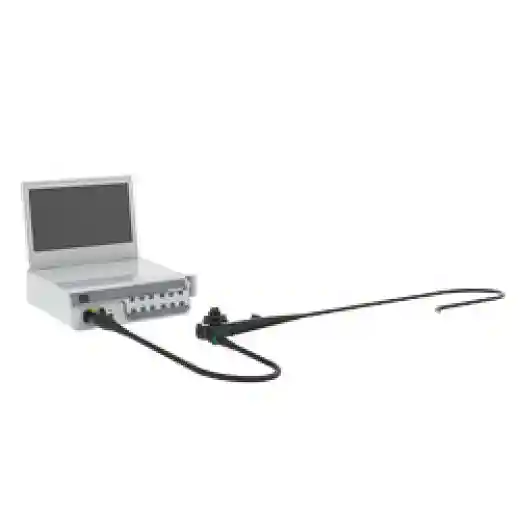

- With external monitor for easy surgical observation and teaching operation
- Electronic imaging to enhance the flexibility and insertion performance of the endoscopy, reducing animal pain during the examination
- 2.0 megapixel camera to capture more image information
- Automatic or manual white balance adjustment to ensure the true reproduction of the image color
- Fully waterproof design for full immersion cleaning and disinfection of endoscopes to reduce cross infection
- A spare machine is provided during the maintenance period to ensure the product is used continuously
- Specification
| Optical System | Field of view | 120° |
| Depth of Field | 3~50mm | |
| Pixel | 2 megapixels | |
| Insertion Part | Working length | 1050mm±10% |
| Max. insertion part outer diameter | ≤φ6.5mm | |
| Distal end diameter | Φ6.0mm+5% | |
| Others | Deflection Angle | Up210°, down 90°, left 100°, right 100° |
| Illumination | ≥8000Lux | |
| Working channel diameter | ≥φ2.0mm | |
| Outer diameter | Φ6.0mm+5% |
