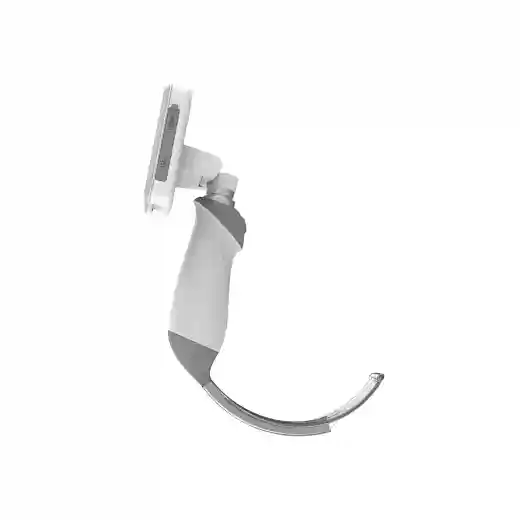

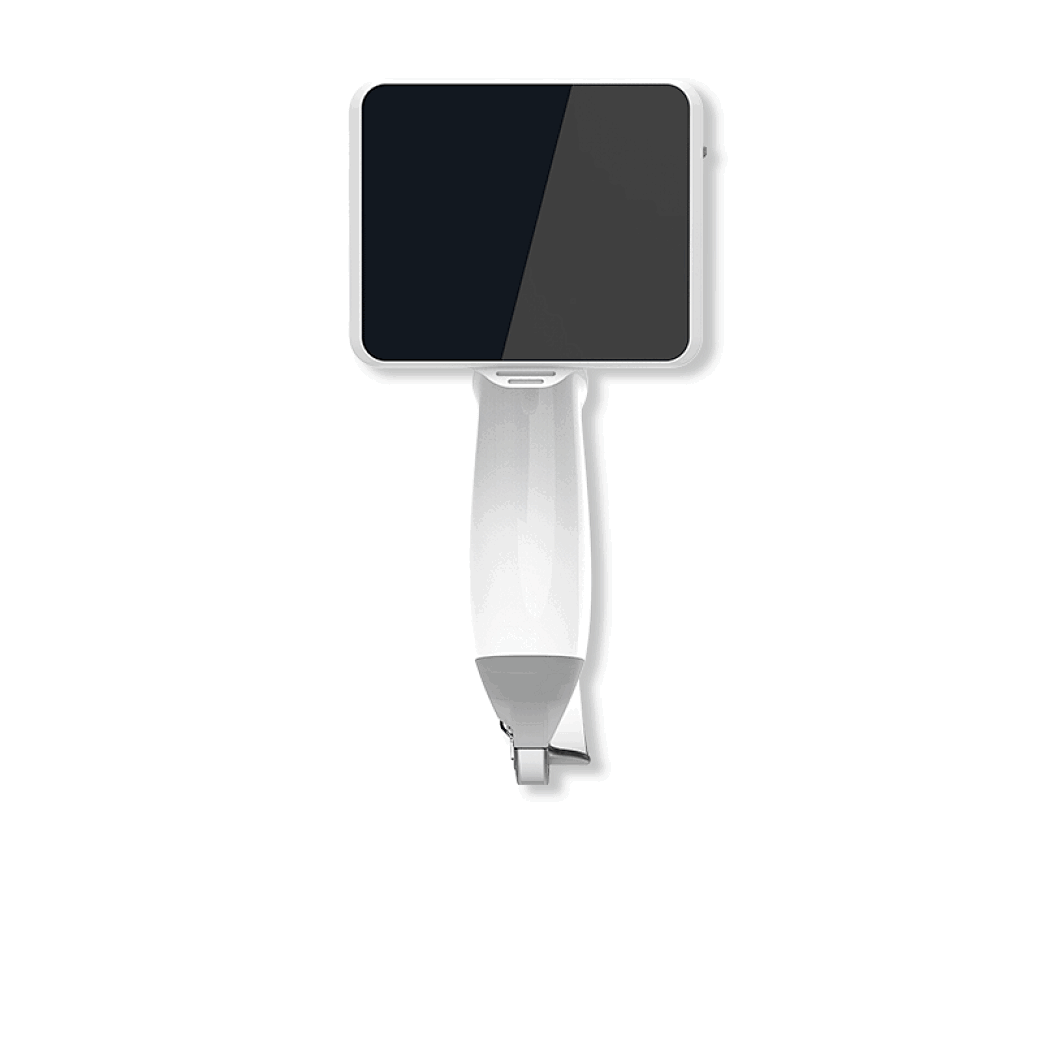

Video Laryngoscope
SP-HJA
Video laryngoscope widely used in anesthesiology, respiratory, ICU, emergency center, ambulance, etc.
Quantity
- Features
- 3.5” IPS HQ Display & Stable operating system
- Visible epiglottis improves the success rate of intubation
- Anti-bacterial handle, comfortable and portable
- Chargeable lithium battery, 4 hours of continuous use after fully charged
- One click to record typical intubation cases
- Available for image/video output to external display for teaching
- Disposable blades to avoid crossed infection
- Multiple size blades can be replaced quickly
- Product Specifications
| Display | 3.5’’ |
| Screen Resolution | 640*480 |
| Rotation Angle | Left and right 180°, up 160°, down 30° |
| Camera Pixels | 720P |
| Built-in Storage Capacity | 16Gb |
| Minimum Illumination | 1500Lux |
| FOV | 80° |
| Light Source | LED |
- Blades Specification
| Model | MAC1 | MAC2 | MAC3 | MAC4 | MAC5 |
| Application | For infants | For Adults | |||
| Width | 20.6mm | 22.4mm | 28.1mm | 29.4mm | 25.4mm |
| Curvature | 105mm | 114mm | 125.5mm | 137.8mm | 132.1mm |
| Angle | 52° | 54° | 51° | 48° | 39° |
| Thickness | 7.5mm | ||||
| Material | Transparent PC | ||||
